I’m not a member of the TBP team, just a forumn member–like yourself. So unfortunately, I never received that email you sent.
That said, I’d be happy to do a screenshare with you later, just not right now. I’m currently at work. How about 6:00pm EST, tonight? Would that work for you?
@Jeff_Smith yes, I think it would be better to send a screenshot as I don’t think we’re getting emails that you send in to the forum.
I am not sure what to screenshot that you haven’t received. I sent the error messages. I sent the my_experiment.py. What else do you need? When I suggested sharing a screen I meant over a google meet or teams call where I could show you interactively. We don’t seem to be converging this way. I can set the meeting up if you give me a good time. This would allow you to see everything.
Hi @Jeff_Smith,

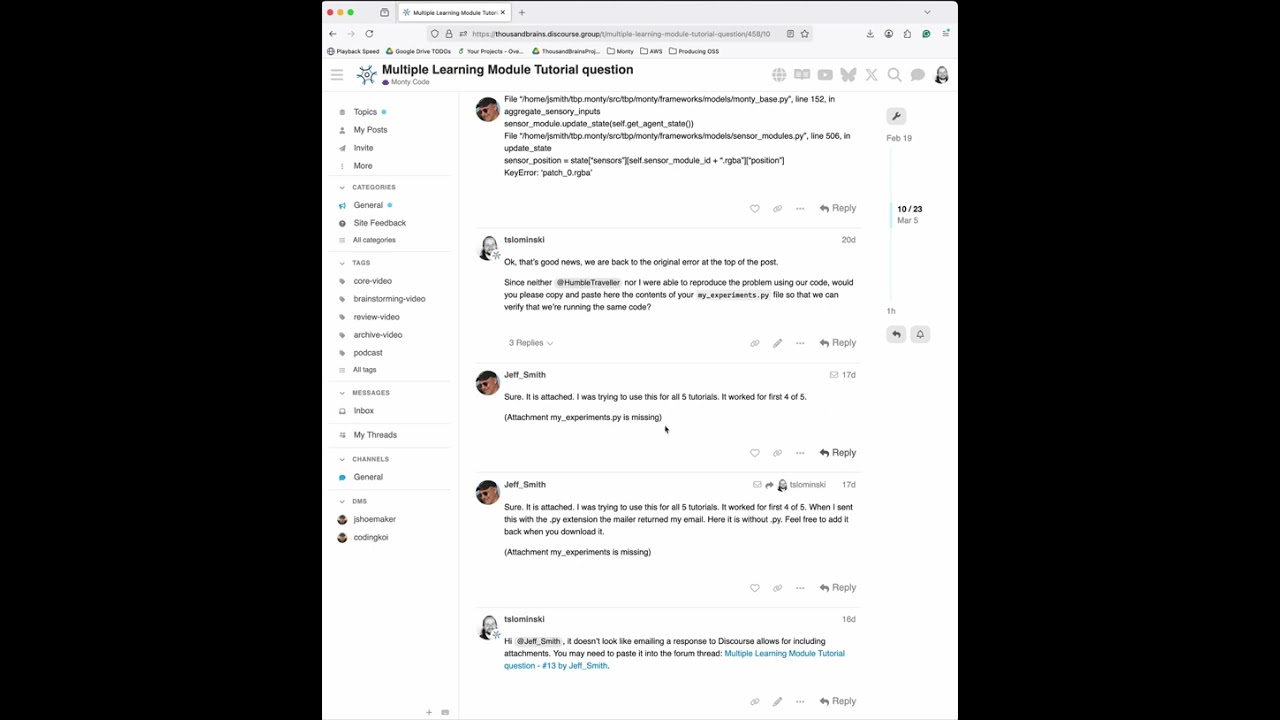

Here is a link to a 3 minute video that shows how I am looking at your messages on our Discourse forum and what I am seeing. Please take a look when you get a chance:
I don’t think your messages are fully coming through to us.
@Jeff_Smith could you please try going to Multiple Learning Module Tutorial question and posting your replies there directly instead of replying to the email notifications? I think the discourse email replies might have some issues with forwarding attachments to the forum so it is best to post on the forum directly where you can also see whether all your message content arrived correctly.
Thanks for the video. I will try it directly from your website.
Here is a copy of my my_experiments.py file. It has a conglomeration of all the tutorials. Perhaps that is the problem…
import os
import copy
import numpy as np
from dataclasses import asdict
from benchmarks.configs.names import MyExperiments
from tbp.monty.frameworks.config_utils.config_args import (
SingleCameraMontyConfig,
LoggingConfig,
MontyArgs,
MotorSystemConfigCurvatureInformedSurface,
PatchAndViewMontyConfig,
PretrainLoggingConfig,
get_cube_face_and_corner_views_rotations,
EvalLoggingConfig,
MotorSystemConfigCurInformedSurfaceGoalStateDriven,
PatchAndViewSOTAMontyConfig,
CSVLoggingConfig,
SurfaceAndViewMontyConfig,
FiveLMMontyConfig,
MotorSystemConfigNaiveScanSpiral,
MotorSystemConfigInformedGoalStateDriven,
)
from tbp.monty.frameworks.config_utils.make_dataset_configs import (
EnvironmentDataloaderPerObjectArgs,
ExperimentArgs,
EvalExperimentArgs,
get_env_dataloader_per_object_by_idx,
PredefinedObjectInitializer,
RandomRotationObjectInitializer,
)
from tbp.monty.frameworks.config_utils.policy_setup_utils import (
make_naive_scan_policy_config,
)
from tbp.monty.frameworks.environments import embodied_data as ED
from tbp.monty.frameworks.experiments import (
MontySupervisedObjectPretrainingExperiment,
MontyExperiment,
MontyObjectRecognitionExperiment,
)
from tbp.monty.frameworks.loggers.monty_handlers import BasicCSVStatsHandler
from tbp.monty.frameworks.models.evidence_matching import (
EvidenceGraphLM,
MontyForEvidenceGraphMatching,
)
from tbp.monty.frameworks.models.goal_state_generation import (
EvidenceGoalStateGenerator,
)
from tbp.monty.frameworks.models.evidence_matching import EvidenceGraphLM
from tbp.monty.frameworks.models.goal_state_generation import (
EvidenceGoalStateGenerator,
)
from tbp.monty.frameworks.models.graph_matching import GraphLM
from tbp.monty.frameworks.models.sensor_modules import (
DetailedLoggingSM,
HabitatSurfacePatchSM,
)
from tbp.monty.frameworks.models.sensor_modules import (
DetailedLoggingSM,
FeatureChangeSM,
)
from tbp.monty.simulators.habitat.configs import (
SinglePTZHabitatDatasetArgs,
SurfaceViewFinderMountHabitatDatasetArgs,
FiveLMMountHabitatDatasetArgs,
)
“”"
project_dir = os.path.expanduser(“~/tbp.monty/results/monty/projects”)
#model_name = “surf_agent_1lm_2obj”
#model_name = “surf_agent_2obj_unsupervised”
model_name = “dist_agent_5lm_2obj”
model_path = os.path.join(project_dir, model_name, “pretrained”)
output_dir = os.path.join(project_dir, model_name)
run_name = “eval”
“”"
object_names = [“mug”, “banana”]
train_rotations = get_cube_face_and_corner_views_rotations()
#test_rotations = [ np.array([0.0, 15.0, 30.0]), np.array([7.0, 77.0, 2.0]), np.array([81.0, 33.0, 90.0])]
test_rotations = [np.array([0, 15, 30])] # A previously unseen rotation of the objects
first_experiment = dict(
experiment_class=MontyExperiment,
logging_config=LoggingConfig(),
experiment_args=ExperimentArgs(
do_eval=False,
max_train_steps=1,
n_train_epochs=1
),
monty_config=SingleCameraMontyConfig(),
# Data{set, loader} config
dataset_class=ED.EnvironmentDataset,
dataset_args=SinglePTZHabitatDatasetArgs(),
train_dataloader_class=ED.EnvironmentDataLoaderPerObject,
train_dataloader_args=get_env_dataloader_per_object_by_idx(start=0, stop=1),
eval_dataloader_class=ED.EnvironmentDataLoaderPerObject,
eval_dataloader_args=get_env_dataloader_per_object_by_idx(start=0, stop=1),
)
surf_agent_2obj_train = dict(
# Specify monty experiment and its args.
# The MontySupervisedObjectPretrainingExperiment class will provide the model
# with object and pose labels for supervised pretraining.
experiment_class=MontySupervisedObjectPretrainingExperiment,
experiment_args=ExperimentArgs(
n_train_epochs=len(train_rotations),
do_eval=False,
),
# Specify logging config.
logging_config=PretrainLoggingConfig(
output_dir=project_dir,
run_name=model_name,
wandb_handlers=,
),
# Specify the Monty config.
monty_config=PatchAndViewMontyConfig(
monty_args=MontyArgs(num_exploratory_steps=500),
# sensory module configs: one surface patch for training (sensor_module_0),
# and one view-finder for initializing each episode and logging
# (sensor_module_1).
sensor_module_configs=dict(
sensor_module_0=dict(
sensor_module_class=HabitatSurfacePatchSM,
sensor_module_args=dict(
sensor_module_id=“patch”,
# a list of features that the SM will extract and send to the LM
features=[
“pose_vectors”,
“pose_fully_defined”,
“on_object”,
“object_coverage”,
“rgba”,
“hsv”,
“min_depth”,
“mean_depth”,
“principal_curvatures”,
“principal_curvatures_log”,
“gaussian_curvature”,
“mean_curvature”,
“gaussian_curvature_sc”,
“mean_curvature_sc”,
],
save_raw_obs=False,
),
),
sensor_module_1=dict(
sensor_module_class=DetailedLoggingSM,
sensor_module_args=dict(
sensor_module_id=“view_finder”,
save_raw_obs=False,
),
),
),
# learning module config: 1 graph learning module.
learning_module_configs=dict(
learning_module_0=dict(
learning_module_class=GraphLM,
learning_module_args=dict(), # Use default LM args
)
),
# Motor system config: class specific to surface agent.
motor_system_config=MotorSystemConfigCurvatureInformedSurface(),
),
dataset_class=ED.EnvironmentDataset,
dataset_args=SurfaceViewFinderMountHabitatDatasetArgs(),
train_dataloader_class=ED.InformedEnvironmentDataLoader,
train_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=PredefinedObjectInitializer(rotations=train_rotations),
),
# For a complete config we need to specify an eval_dataloader but since we only train here, this is unused
eval_dataloader_class=ED.InformedEnvironmentDataLoader,
eval_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=PredefinedObjectInitializer(rotations=train_rotations),
),
)
dist_agent_5lm_2obj_train = dict(
# Specify monty experiment class and its args.
# The MontySupervisedObjectPretrainingExperiment class will provide the model
# with object and pose labels for supervised pretraining.
experiment_class=MontySupervisedObjectPretrainingExperiment,
experiment_args=ExperimentArgs(
do_eval=False,
n_train_epochs=len(train_rotations),
),
# Specify logging config.
logging_config=PretrainLoggingConfig(
output_dir=project_dir,
run_name=model_name,
),
# Specify the Monty model. The FiveLLMMontyConfig contains all of the sensor module
# configs, learning module configs, and connectivity matrices we need.
monty_config=FiveLMMontyConfig(
monty_args=MontyArgs(num_exploratory_steps=500),
motor_system_config=MotorSystemConfigNaiveScanSpiral(
motor_system_args=make_naive_scan_policy_config(step_size=5)
),
),
# Set up the environment and agent
dataset_class=ED.EnvironmentDataset,
dataset_args=SurfaceViewFinderMountHabitatDatasetArgs(),
# Set up the training dataloader
train_dataloader_class=ED.InformedEnvironmentDataLoader,
train_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=PredefinedObjectInitializer(rotations=train_rotations),
),
# For a complete config we need to specify an eval_dataloader but since we only train here, this is unused
eval_dataloader_class=ED.InformedEnvironmentDataLoader,
eval_dataloader_args=get_env_dataloader_per_object_by_idx(start=0, stop=1),
#eval_dataloader_args=EnvironmentDataloaderPerObjectArgs(
# object_names=object_names,
# object_init_sampler=PredefinedObjectInitializer(rotations=train_rotations),
#),
)
“”"
Learning Module Configs
“”"
evidence_lm_config = dict(
learning_module_class=EvidenceGraphLM,
learning_module_args=dict(
max_match_distance=0.01, # =1cm
feature_weights={
“patch”: {
# Weighting saturation and value less since these might change under
# different lighting conditions.
“hsv”: np.array([1, 0.5, 0.5]),
}
},
max_nneighbors=10,
# Use this to update all hypotheses > x_percent_threshold (faster)
evidence_update_threshold=“x_percent_threshold”,
x_percent_threshold=20,
gsg_class=EvidenceGoalStateGenerator,
gsg_args=dict(
goal_tolerances=dict(
location=0.015, # distance in meters
), # Tolerance(s) when determining goal-state success
min_post_goal_success_steps=5, # Number of necessary steps for a hypothesis
),
),
)
tolerance_values = {
“hsv”: np.array([0.1, 0.2, 0.2]),
“principal_curvatures_log”: np.ones(2),
}
learning_module_configs = {}
for i in range(5):
lm = copy.deepcopy(evidence_lm_config)
lm[“learning_module_args”][“tolerances”] = {f"patch_{i}“: tolerance_values}
learning_module_configs[f"learning_module_{i}”] = lm
dist_agent_5lm_2obj_eval = dict(
# Specify monty experiment class and its args.
experiment_class=MontyObjectRecognitionExperiment,
experiment_args=EvalExperimentArgs(
model_name_or_path=model_path,
n_eval_epochs=len(test_rotations),
min_lms_match=3, # Terminate when 3 learning modules makes a decision.
),
# Specify logging config.
logging_config=EvalLoggingConfig(
output_dir=os.path.join(project_dir, model_name),
run_name=“eval”,
monty_handlers=[BasicCSVStatsHandler],
wandb_handlers=,
),
# Specify the Monty model. The FiveLLMMontyConfig contains all of the
# sensor module configs and connectivity matrices. We will specify
# evidence-based learning modules and MontyForEvidenceGraphMatching which
# facilitates voting between evidence-based learning modules.
monty_config=FiveLMMontyConfig(
monty_args=MontyArgs(min_eval_steps=20),
monty_class=MontyForEvidenceGraphMatching,
learning_module_configs=learning_module_configs,
motor_system_config=MotorSystemConfigInformedGoalStateDriven(),
),
# Set up the environment and agent.
dataset_class=ED.EnvironmentDataset,
dataset_args=FiveLMMountHabitatDatasetArgs(),
# Set up the training dataloader. Unused, but must be included.
train_dataloader_class=ED.InformedEnvironmentDataLoader,
train_dataloader_args=get_env_dataloader_per_object_by_idx(start=0, stop=1),
# Set up the evaluation dataloader.
eval_dataloader_class=ED.InformedEnvironmentDataLoader,
eval_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=PredefinedObjectInitializer(rotations=test_rotations),
),
)
sensor_noise_params = dict(
features=dict(
pose_vectors=2, # rotate by random degrees along xyz
hsv=np.array([0.1, 0.2, 0.2]), # add noise to each channel (the values here specify std. deviation of gaussian for each channel individually)
principal_curvatures_log=0.1,
pose_fully_defined=0.01, # flip bool in 1% of cases
),
location=0.002, # add gaussian noise with 0.002 std (0.2cm)
)
sensor_module_0 = dict(
sensor_module_class=FeatureChangeSM,
sensor_module_args=dict(
sensor_module_id=“patch”,
# Features that will be extracted and sent to LM
# note: don’t have to be all the features extracted during pretraining.
features=[
“pose_vectors”,
“pose_fully_defined”,
“on_object”,
“object_coverage”,
“min_depth”,
“mean_depth”,
“hsv”,
“principal_curvatures”,
“principal_curvatures_log”,
],
save_raw_obs=False,
# FeatureChangeSM will only send an observation to the LM if features or location
# changed more than these amounts.
delta_thresholds={
“on_object”: 0,
“n_steps”: 20,
“hsv”: [0.1, 0.1, 0.1],
“pose_vectors”: [np.pi / 4, np.pi * 2, np.pi * 2],
“principal_curvatures_log”: [2, 2],
“distance”: 0.01,
},
surf_agent_sm=True, # for surface agent
noise_params=sensor_noise_params,
),
)
sensor_module_1 = dict(
sensor_module_class=DetailedLoggingSM,
sensor_module_args=dict(
sensor_module_id=“view_finder”,
save_raw_obs=False,
),
)
sensor_module_configs = dict(
sensor_module_0=sensor_module_0,
sensor_module_1=sensor_module_1,
)
tolerances = {
“patch”: {
“hsv”: np.array([0.1, 0.2, 0.2]),
“principal_curvatures_log”: np.ones(2),
}
}
feature_weights = {
“patch”: {
# Weighting saturation and value less since these might change under different
# lighting conditions.
“hsv”: np.array([1, 0.5, 0.5]),
}
}
learning_module_0 = dict(
learning_module_class=EvidenceGraphLM,
learning_module_args=dict(
# Search the model in a radius of 1cm from the hypothesized location on the model.
max_match_distance=0.01, # =1cm
tolerances=tolerances,
feature_weights=feature_weights,
# Most likely hypothesis needs to have 20% more evidence than the others to
# be considered certain enough to trigger a terminal condition (match).
x_percent_threshold=20,
# Look at features associated with (at most) the 10 closest learned points.
max_nneighbors=10,
# Update all hypotheses with evidence > x_percent_threshold (faster)
evidence_update_threshold=“x_percent_threshold”,
# Config for goal state generator of LM which is used for model-based action
# suggestions, such as hypothesis-testing actions.
gsg_class=EvidenceGoalStateGenerator,
gsg_args=dict(
# Tolerance(s) when determining goal-state success
goal_tolerances=dict(
location=0.015, # distance in meters
),
# Number of necessary steps for a hypothesis-testing action to be considered
min_post_goal_success_steps=5,
),
),
)
learning_module_configs = dict(learning_module_0=learning_module_0)
surf_agent_2obj_eval = dict(
# Set up experiment
experiment_class=MontyObjectRecognitionExperiment,
experiment_args=EvalExperimentArgs(
model_name_or_path=model_path, # load the pre-trained models from this path
n_eval_epochs=len(test_rotations),
max_total_steps=5000,
),
logging_config=EvalLoggingConfig(
output_dir=output_dir,
run_name=run_name,
wandb_handlers=, # remove this line if you, additionally, want to log to WandB.
),
# Set up monty, including LM, SM, and motor system.
monty_config=PatchAndViewSOTAMontyConfig(
monty_args=MontyArgs(min_eval_steps=20),
sensor_module_configs=sensor_module_configs,
learning_module_configs=learning_module_configs,
motor_system_config=MotorSystemConfigCurInformedSurfaceGoalStateDriven(),
),
# Set up environment/data
dataset_class=ED.EnvironmentDataset,
dataset_args=SurfaceViewFinderMountHabitatDatasetArgs(),
eval_dataloader_class=ED.InformedEnvironmentDataLoader,
eval_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=PredefinedObjectInitializer(rotations=test_rotations),
),
# Doesn’t get used, but currently needs to be set anyways.
train_dataloader_class=ED.InformedEnvironmentDataLoader,
train_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=PredefinedObjectInitializer(rotations=test_rotations),
),
)
learning_module_0 = dict(
learning_module_class=EvidenceGraphLM,
learning_module_args=dict(
max_match_distance=0.01,
# Tolerances within which features must match stored values in order to add
# evidence to a hypothesis.
tolerances={
“patch”: {
“hsv”: np.array([0.05, 0.1, 0.1]),
“principal_curvatures_log”: np.ones(2),
}
},
feature_weights={
“patch”: {
# Weighting saturation and value less since these might change
# under different lighting conditions.
“hsv”: np.array([1, 0.5, 0.5]),
}
},
x_percent_threshold=20,
# Thresholds to use for when two points are considered different enough to
# both be stored in memory.
graph_delta_thresholds=dict(
patch=dict(
distance=0.01,
pose_vectors=[np.pi / 8, np.pi * 2, np.pi * 2],
principal_curvatures_log=[1.0, 1.0],
hsv=[0.1, 1, 1],
)
),
# object_evidence_th sets a minimum threshold on the amount of evidence we have
# for the current object in order to converge; while we can also set min_steps
# for the experiment, this puts a more stringent requirement that we’ve had
# many steps that have contributed evidence.
object_evidence_threshold=100,
# Symmetry evidence (indicating possibly symmetry in rotations) increments a lot
# after 100 steps and easily reaches the default required evidence. The below
# parameter value partially addresses this, altough we note these are temporary
# fixes and we intend to implement a more principled approach in the future.
required_symmetry_evidence=20,
max_nneighbors=5,
),
)
learning_module_configs = dict(learning_module_0=learning_module_0)
surf_agent_2obj_unsupervised = dict(
# Set up unsupervised experiment.
experiment_class=MontyObjectRecognitionExperiment,
experiment_args=ExperimentArgs(
# Not running eval here. The only difference between training and evaluation
# is that during evaluation, no models are updated.
do_eval=False,
n_train_epochs=3,
max_train_steps=2000,
max_total_steps=5000,
),
logging_config=CSVLoggingConfig(
python_log_level=“INFO”,
output_dir=project_dir,
run_name=model_name,
),
# Set up monty, including LM, SM, and motor system. We will use the default
# sensor modules (1 habitat surface patch, one logging view finder), motor system,
# and connectivity matrices given by SurfaceAndViewMontyConfig.
monty_config=SurfaceAndViewMontyConfig(
# Take 1000 exploratory steps after recognizing the object to collect more
# information about it. Require at least 100 steps before recognizing an object
# to avoid early misclassifications when we have few objects in memory.
monty_args=MontyArgs(num_exploratory_steps=1000, min_train_steps=100),
learning_module_configs=learning_module_configs,
),
# Set up the environment and agent.
dataset_class=ED.EnvironmentDataset,
dataset_args=SurfaceViewFinderMountHabitatDatasetArgs(),
train_dataloader_class=ED.InformedEnvironmentDataLoader,
train_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=RandomRotationObjectInitializer(),
),
# Doesn’t get used, but currently needs to be set anyways.
eval_dataloader_class=ED.InformedEnvironmentDataLoader,
eval_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=RandomRotationObjectInitializer(),
),
)
experiments = MyExperiments(
# For each experiment name in MyExperiments, add its corresponding
# configuration here.
# e.g.: my_experiment=my_experiment_config
#first_experiment=first_experiment,
#surf_agent_2obj_train=surf_agent_2obj_train,
#surf_agent_2obj_eval=surf_agent_2obj_eval,
#surf_agent_2obj_unsupervised=surf_agent_2obj_unsupervised,
dist_agent_5lm_2obj_train=dist_agent_5lm_2obj_train,
#dist_agent_5lm_2obj_eval=dist_agent_5lm_2obj_eval,
)
CONFIGS = asdict(experiments)
Thanks for the file content @Jeff_Smith!
I’m currently away from my lab computer atm, but I’ll compare what you have against mine tonight. In the meantime, I quickly went through and cleaned up your code. Hopefully this will help the TBP team on their side:
import os
import copy
import numpy as np
from dataclasses import asdict
from benchmarks.configs.names import MyExperiments
Add your experiment configurations here
e.g.: my_experiment_config = dict(…)
from tbp.monty.frameworks.config_utils.config_args import (
SingleCameraMontyConfig,
LoggingConfig,
MontyArgs,
MotorSystemConfigCurvatureInformedSurface,
PatchAndViewMontyConfig,
PretrainLoggingConfig,
get_cube_face_and_corner_views_rotations,
EvalLoggingConfig,
MotorSystemConfigCurInformedSurfaceGoalStateDriven,
PatchAndViewSOTAMontyConfig,
CSVLoggingConfig,
SurfaceAndViewMontyConfig,
FiveLMMontyConfig,
MotorSystemConfigNaiveScanSpiral,
MotorSystemConfigInformedGoalStateDriven,
)
from tbp.monty.frameworks.config_utils.make_dataset_configs import (
EnvironmentDataloaderPerObjectArgs,
ExperimentArgs,
EvalExperimentArgs,
get_env_dataloader_per_object_by_idx,
PredefinedObjectInitializer,
RandomRotationObjectInitializer,
)
from tbp.monty.frameworks.config_utils.policy_setup_utils import (
make_naive_scan_policy_config,
)
from tbp.monty.frameworks.environments import embodied_data as ED
from tbp.monty.frameworks.experiments import (
MontySupervisedObjectPretrainingExperiment,
MontyExperiment,
MontyObjectRecognitionExperiment,
)
from tbp.monty.frameworks.loggers.monty_handlers import BasicCSVStatsHandler
from tbp.monty.frameworks.models.evidence_matching import (
EvidenceGraphLM,
MontyForEvidenceGraphMatching,
)
from tbp.monty.frameworks.models.goal_state_generation import (
EvidenceGoalStateGenerator,
)
from tbp.monty.frameworks.models.evidence_matching import EvidenceGraphLM
from tbp.monty.frameworks.models.goal_state_generation import (
EvidenceGoalStateGenerator,
)
from tbp.monty.frameworks.models.graph_matching import GraphLM
from tbp.monty.frameworks.models.sensor_modules import (
DetailedLoggingSM,
HabitatSurfacePatchSM,
)
from tbp.monty.frameworks.models.sensor_modules import (
DetailedLoggingSM,
FeatureChangeSM,
)
from tbp.monty.simulators.habitat.configs import (
SinglePTZHabitatDatasetArgs,
SurfaceViewFinderMountHabitatDatasetArgs,
FiveLMMountHabitatDatasetArgs,
)
"""
Basic Info
"""
# Specify directory where an output directory will be created.
project_dir = os.path.expanduser("~/tbp/results/monty/projects")
Specify a name for the model.
#model_name = “surf_agent_1lm_2obj”
#model_name = “surf_agent_2obj_unsupervised”
model_name = “dist_agent_5lm_2obj”
# Where to find the pretrained model
model_path = os.path.join(project_dir, model_name, “pretrained”)
# Where to save eval logs
output_dir = os.path.join(project_dir, model_name)
run_name = “eval”
"""
Training
"""
# Here we specify which objects to learn. ‘mug’ and ‘banana’ come from the YCB dataset.
# If you don’t have the YCB dataset, replace with names from habitat (e.g.,
# ‘capsule3DSolid’, ‘cubeSolid’, etc.).
object_names = [“mug”, “banana”]
# Get predefined object rotations that give good views of the object from 14 angles.
train_rotations = get_cube_face_and_corner_views_rotations()
#test_rotations = [ np.array([0.0, 15.0, 30.0]), np.array([7.0, 77.0, 2.0]), np.array([81.0, 33.0, 90.0])]
test_rotations = [np.array([0, 15, 30])] # A previously unseen rotation of the objects
first_experiment = dict(
experiment_class=MontyExperiment,
logging_config=LoggingConfig(),
experiment_args=ExperimentArgs(
do_eval=False,
max_train_steps=1,
n_train_epochs=1
),
monty_config=SingleCameraMontyConfig(),
# Data{set, loader} config
dataset_class=ED.EnvironmentDataset,
dataset_args=SinglePTZHabitatDatasetArgs(),
train_dataloader_class=ED.EnvironmentDataLoaderPerObject,
train_dataloader_args=get_env_dataloader_per_object_by_idx(start=0, stop=1),
eval_dataloader_class=ED.EnvironmentDataLoaderPerObject,
eval_dataloader_args=get_env_dataloader_per_object_by_idx(start=0, stop=1),
)
The config dictionary for the pretraining experiment.
surf_agent_2obj_train = dict(
# Specify monty experiment and its args.
# The MontySupervisedObjectPretrainingExperiment class will provide the model
# with object and pose labels for supervised pretraining.
experiment_class=MontySupervisedObjectPretrainingExperiment,
experiment_args=ExperimentArgs(
n_train_epochs=len(train_rotations),
do_eval=False,
),
# Specify logging config.
logging_config=PretrainLoggingConfig(
output_dir=project_dir,
run_name=model_name,
wandb_handlers=,
),
# Specify the Monty config.
monty_config=PatchAndViewMontyConfig(
monty_args=MontyArgs(num_exploratory_steps=500),
# sensory module configs: one surface patch for training (sensor_module_0),
# and one view-finder for initializing each episode and logging
# (sensor_module_1).
sensor_module_configs=dict(
sensor_module_0=dict(
sensor_module_class=HabitatSurfacePatchSM,
sensor_module_args=dict(
sensor_module_id=“patch”,
# a list of features that the SM will extract and send to the LM
features=[
“pose_vectors”,
“pose_fully_defined”,
“on_object”,
“object_coverage”,
“rgba”,
“hsv”,
“min_depth”,
“mean_depth”,
“principal_curvatures”,
“principal_curvatures_log”,
“gaussian_curvature”,
“mean_curvature”,
“gaussian_curvature_sc”,
“mean_curvature_sc”,
],
save_raw_obs=False,
),
),
sensor_module_1=dict(
sensor_module_class=DetailedLoggingSM,
sensor_module_args=dict(
sensor_module_id=“view_finder”,
save_raw_obs=False,
),
),
),
# learning module config: 1 graph learning module.
learning_module_configs=dict(
learning_module_0=dict(
learning_module_class=GraphLM,
learning_module_args=dict(), # Use default LM args
)
),
# Motor system config: class specific to surface agent.
motor_system_config=MotorSystemConfigCurvatureInformedSurface(),
),
Set up the environment and agent
dataset_class=ED.EnvironmentDataset,
dataset_args=SurfaceViewFinderMountHabitatDatasetArgs(),
train_dataloader_class=ED.InformedEnvironmentDataLoader,
train_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=PredefinedObjectInitializer(rotations=train_rotations),
),
# For a complete config we need to specify an eval_dataloader but since we only train here, this is unused
eval_dataloader_class=ED.InformedEnvironmentDataLoader,
eval_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=PredefinedObjectInitializer(rotations=train_rotations),
),
)
The config dictionary for the pretraining experiment.
dist_agent_5lm_2obj_train = dict(
# Specify monty experiment class and its args.
# The MontySupervisedObjectPretrainingExperiment class will provide the model
# with object and pose labels for supervised pretraining.
experiment_class=MontySupervisedObjectPretrainingExperiment,
experiment_args=ExperimentArgs(
do_eval=False,
n_train_epochs=len(train_rotations),
),
# Specify logging config.
logging_config=PretrainLoggingConfig(
output_dir=project_dir,
run_name=model_name,
),
# Specify the Monty model. The FiveLLMMontyConfig contains all of the sensor module
# configs, learning module configs, and connectivity matrices we need.
monty_config=FiveLMMontyConfig(
monty_args=MontyArgs(num_exploratory_steps=500),
motor_system_config=MotorSystemConfigNaiveScanSpiral(
motor_system_args=make_naive_scan_policy_config(step_size=5)
),
),
# Set up the environment and agent
dataset_class=ED.EnvironmentDataset,
dataset_args=SurfaceViewFinderMountHabitatDatasetArgs(),
# Set up the training dataloader
train_dataloader_class=ED.InformedEnvironmentDataLoader,
train_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=PredefinedObjectInitializer(rotations=train_rotations),
),
# For a complete config we need to specify an eval_dataloader but since we only train here, this is unused
eval_dataloader_class=ED.InformedEnvironmentDataLoader,
eval_dataloader_args=get_env_dataloader_per_object_by_idx(start=0, stop=1),
#eval_dataloader_args=EnvironmentDataloaderPerObjectArgs(
# object_names=object_names,
# object_init_sampler=PredefinedObjectInitializer(rotations=train_rotations),
#),
)
"""
Learning Module Configs
"""
#Create a template config that we’ll make copies of.
evidence_lm_config = dict(
learning_module_class=EvidenceGraphLM,
learning_module_args=dict(
max_match_distance=0.01, # =1cm
feature_weights={
“patch”: {
# Weighting saturation and value less since these might change under
# different lighting conditions.
“hsv”: np.array([1, 0.5, 0.5]),
}
},
max_nneighbors=10,
# Use this to update all hypotheses > x_percent_threshold (faster)
evidence_update_threshold=“x_percent_threshold”,
x_percent_threshold=20,
gsg_class=EvidenceGoalStateGenerator,
gsg_args=dict(
goal_tolerances=dict(
location=0.015, # distance in meters
), # Tolerance(s) when determining goal-state success
min_post_goal_success_steps=5, # Number of necessary steps for a hypothesis
),
),
)
#We’ll also reuse these tolerances, so we specify them here.
tolerance_values = {
“hsv”: np.array([0.1, 0.2, 0.2]),
“principal_curvatures_log”: np.ones(2),
}
# Now we make 5 copies of the template config, each with the tolerances specified for
# one of the five sensor modules.
learning_module_configs = {}
for i in range(5):
lm = copy.deepcopy(evidence_lm_config)
lm[“learning_module_args”][“tolerances”] = {f"patch_{i}“: tolerance_values}
learning_module_configs[f"learning_module_{i}”] = lm
# The config dictionary for the pretraining experiment.
dist_agent_5lm_2obj_eval = dict(
# Specify monty experiment class and its args.
experiment_class=MontyObjectRecognitionExperiment,
experiment_args=EvalExperimentArgs(
model_name_or_path=model_path,
n_eval_epochs=len(test_rotations),
min_lms_match=3, # Terminate when 3 learning modules makes a decision.
),
# Specify logging config.
logging_config=EvalLoggingConfig(
output_dir=os.path.join(project_dir, model_name),
run_name=“eval”,
monty_handlers=[BasicCSVStatsHandler],
wandb_handlers=,
),
# Specify the Monty model. The FiveLLMMontyConfig contains all of the
# sensor module configs and connectivity matrices. We will specify
# evidence-based learning modules and MontyForEvidenceGraphMatching which
# facilitates voting between evidence-based learning modules.
monty_config=FiveLMMontyConfig(
monty_args=MontyArgs(min_eval_steps=20),
monty_class=MontyForEvidenceGraphMatching,
learning_module_configs=learning_module_configs,
motor_system_config=MotorSystemConfigInformedGoalStateDriven(),
),
# Set up the environment and agent.
dataset_class=ED.EnvironmentDataset,
dataset_args=FiveLMMountHabitatDatasetArgs(),
# Set up the training dataloader. Unused, but must be included.
train_dataloader_class=ED.InformedEnvironmentDataLoader,
train_dataloader_args=get_env_dataloader_per_object_by_idx(start=0, stop=1),
# Set up the evaluation dataloader.
eval_dataloader_class=ED.InformedEnvironmentDataLoader,
eval_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=PredefinedObjectInitializer(rotations=test_rotations),
),
)
# Let’s add some noise to the sensor module outputs to make the task more challenging.
sensor_noise_params = dict(
features=dict(
pose_vectors=2, # rotate by random degrees along xyz
hsv=np.array([0.1, 0.2, 0.2]), # add noise to each channel (the values here specify std. deviation of gaussian for each channel individually)
principal_curvatures_log=0.1,
pose_fully_defined=0.01, # flip bool in 1% of cases
),
location=0.002, # add gaussian noise with 0.002 std (0.2cm)
)
sensor_module_0 = dict(
sensor_module_class=FeatureChangeSM,
sensor_module_args=dict(
sensor_module_id=“patch”,
# Features that will be extracted and sent to LM
# note: don’t have to be all the features extracted during pretraining.
features=[
“pose_vectors”,
“pose_fully_defined”,
“on_object”,
“object_coverage”,
“min_depth”,
“mean_depth”,
“hsv”,
“principal_curvatures”,
“principal_curvatures_log”,
],
save_raw_obs=False,
# FeatureChangeSM will only send an observation to the LM if features or location
# changed more than these amounts.
delta_thresholds={
“on_object”: 0,
“n_steps”: 20,
“hsv”: [0.1, 0.1, 0.1],
“pose_vectors”: [np.pi / 4, np.pi * 2, np.pi * 2],
“principal_curvatures_log”: [2, 2],
“distance”: 0.01,
},
surf_agent_sm=True, # for surface agent
noise_params=sensor_noise_params,
),
)
sensor_module_1 = dict(
sensor_module_class=DetailedLoggingSM,
sensor_module_args=dict(
sensor_module_id=“view_finder”,
save_raw_obs=False,
),
)
sensor_module_configs = dict(
sensor_module_0=sensor_module_0,
sensor_module_1=sensor_module_1,
)
# Tolerances within which features must match stored values in order to add evidence
# to a hypothesis.
tolerances = {
“patch”: {
“hsv”: np.array([0.1, 0.2, 0.2]),
“principal_curvatures_log”: np.ones(2),
}
}
# Features where weight is not specified default to 1.
feature_weights = {
“patch”: {
# Weighting saturation and value less since these might change under different
# lighting conditions.
“hsv”: np.array([1, 0.5, 0.5]),
}
}
learning_module_0 = dict(
learning_module_class=EvidenceGraphLM,
learning_module_args=dict(
# Search the model in a radius of 1cm from the hypothesized location on the model.
max_match_distance=0.01, # =1cm
tolerances=tolerances,
feature_weights=feature_weights,
# Most likely hypothesis needs to have 20% more evidence than the others to
# be considered certain enough to trigger a terminal condition (match).
x_percent_threshold=20,
# Look at features associated with (at most) the 10 closest learned points.
max_nneighbors=10,
# Update all hypotheses with evidence > x_percent_threshold (faster)
evidence_update_threshold=“x_percent_threshold”,
# Config for goal state generator of LM which is used for model-based action
# suggestions, such as hypothesis-testing actions.
gsg_class=EvidenceGoalStateGenerator,
gsg_args=dict(
# Tolerance(s) when determining goal-state success
goal_tolerances=dict(
location=0.015, # distance in meters
),
# Number of necessary steps for a hypothesis-testing action to be considered
min_post_goal_success_steps=5,
),
),
)
learning_module_configs = dict(learning_module_0=learning_module_0)
# The config dictionary for the evaluation experiment.
surf_agent_2obj_eval = dict(
# Set up experiment
experiment_class=MontyObjectRecognitionExperiment,
experiment_args=EvalExperimentArgs(
model_name_or_path=model_path, # load the pre-trained models from this path
n_eval_epochs=len(test_rotations),
max_total_steps=5000,
),
logging_config=EvalLoggingConfig(
output_dir=output_dir,
run_name=run_name,
wandb_handlers=, # remove this line if you, additionally, want to log to WandB.
),
# Set up monty, including LM, SM, and motor system.
monty_config=PatchAndViewSOTAMontyConfig(
monty_args=MontyArgs(min_eval_steps=20),
sensor_module_configs=sensor_module_configs,
learning_module_configs=learning_module_configs,
motor_system_config=MotorSystemConfigCurInformedSurfaceGoalStateDriven(),
),
# Set up environment/data
dataset_class=ED.EnvironmentDataset,
dataset_args=SurfaceViewFinderMountHabitatDatasetArgs(),
eval_dataloader_class=ED.InformedEnvironmentDataLoader,
eval_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=PredefinedObjectInitializer(rotations=test_rotations),
),
# Doesn’t get used, but currently needs to be set anyways.
train_dataloader_class=ED.InformedEnvironmentDataLoader,
train_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=PredefinedObjectInitializer(rotations=test_rotations),
),
)
# Set up config for an evidence graph learning module.
learning_module_0 = dict(
learning_module_class=EvidenceGraphLM,
learning_module_args=dict(
max_match_distance=0.01,
# Tolerances within which features must match stored values in order to add
# evidence to a hypothesis.
tolerances={
“patch”: {
“hsv”: np.array([0.05, 0.1, 0.1]),
“principal_curvatures_log”: np.ones(2),
}
},
feature_weights={
“patch”: {
# Weighting saturation and value less since these might change
# under different lighting conditions.
“hsv”: np.array([1, 0.5, 0.5]),
}
},
x_percent_threshold=20,
# Thresholds to use for when two points are considered different enough to
# both be stored in memory.
graph_delta_thresholds=dict(
patch=dict(
distance=0.01,
pose_vectors=[np.pi / 8, np.pi * 2, np.pi * 2],
principal_curvatures_log=[1.0, 1.0],
hsv=[0.1, 1, 1],
)
),
# object_evidence_th sets a minimum threshold on the amount of evidence we have
# for the current object in order to converge; while we can also set min_steps
# for the experiment, this puts a more stringent requirement that we’ve had
# many steps that have contributed evidence.
object_evidence_threshold=100,
# Symmetry evidence (indicating possibly symmetry in rotations) increments a lot
# after 100 steps and easily reaches the default required evidence. The below
# parameter value partially addresses this, altough we note these are temporary
# fixes and we intend to implement a more principled approach in the future.
required_symmetry_evidence=20,
max_nneighbors=5,
),
)
learning_module_configs = dict(learning_module_0=learning_module_0)
The config dictionary for the unsupervised learning experiment.
surf_agent_2obj_unsupervised = dict(
# Set up unsupervised experiment.
experiment_class=MontyObjectRecognitionExperiment,
experiment_args=ExperimentArgs(
# Not running eval here. The only difference between training and evaluation
# is that during evaluation, no models are updated.
do_eval=False,
n_train_epochs=3,
max_train_steps=2000,
max_total_steps=5000,
),
logging_config=CSVLoggingConfig(
python_log_level=“INFO”,
output_dir=project_dir,
run_name=model_name,
),
# Set up monty, including LM, SM, and motor system. We will use the default
# sensor modules (1 habitat surface patch, one logging view finder), motor system,
# and connectivity matrices given by SurfaceAndViewMontyConfig.
monty_config=SurfaceAndViewMontyConfig(
# Take 1000 exploratory steps after recognizing the object to collect more
# information about it. Require at least 100 steps before recognizing an object
# to avoid early misclassifications when we have few objects in memory.
monty_args=MontyArgs(num_exploratory_steps=1000, min_train_steps=100),
learning_module_configs=learning_module_configs,
),
# Set up the environment and agent.
dataset_class=ED.EnvironmentDataset,
dataset_args=SurfaceViewFinderMountHabitatDatasetArgs(),
train_dataloader_class=ED.InformedEnvironmentDataLoader,
train_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=RandomRotationObjectInitializer(),
),
# Doesn’t get used, but currently needs to be set anyways.
eval_dataloader_class=ED.InformedEnvironmentDataLoader,
eval_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=RandomRotationObjectInitializer(),
),
)
experiments = MyExperiments(
# For each experiment name in MyExperiments, add its corresponding
# configuration here.
# e.g.: my_experiment=my_experiment_config
#first_experiment=first_experiment,
#surf_agent_2obj_train=surf_agent_2obj_train,
#surf_agent_2obj_eval=surf_agent_2obj_eval,
#surf_agent_2obj_unsupervised=surf_agent_2obj_unsupervised,
dist_agent_5lm_2obj_train=dist_agent_5lm_2obj_train,
#dist_agent_5lm_2obj_eval=dist_agent_5lm_2obj_eval,
)
CONFIGS = asdict(experiments)
Its been a minute since I looked at the tutorial code, but at a glance this… well, it looks like a lot. A lot more than what should be present in the my_expirements file, if memory serves. Maybe two to three times more content here than whats actually needed.
Edit: It kind of looks like we’re persisting code across multiple tutorials, which I don’t recall needing to do so extensively. I’m guessing we’re getting some sort of confliction in the experiment config as a result?
My advice would honestly be to wipe out whats in currently in the file and start fresh.
# Copyright 2025 Thousand Brains Project
#
# Copyright may exist in Contributors' modifications
# and/or contributions to the work.
#
# Use of this source code is governed by the MIT
# license that can be found in the LICENSE file or at
# https://opensource.org/licenses/MIT.
from dataclasses import asdict
from benchmarks.configs.names import MyExperiments
# Add your experiment configurations here
# e.g.: my_experiment_config = dict(...)
experiments = MyExperiments(
# For each experiment name in MyExperiments, add its corresponding
# configuration here.
# e.g.: my_experiment=my_experiment_config
)
CONFIGS = asdict(experiments)
Understandable if you don’t want to do this. When I get home I can send you what my file looks like.
Alright @Jeff_Smith,
For what its worth, here is my my_experiments.py file:
# Copyright 2025 Thousand Brains Project
#
# Copyright may exist in Contributors' modifications
# and/or contributions to the work.
#
# Use of this source code is governed by the MIT
# license that can be found in the LICENSE file or at
# https://opensource.org/licenses/MIT.
from dataclasses import asdict
from benchmarks.configs.names import MyExperiments
from tbp.monty.frameworks.config_utils.config_args import (
SingleCameraMontyConfig,
LoggingConfig
)
from tbp.monty.frameworks.config_utils.make_dataset_configs import (
ExperimentArgs,
get_env_dataloader_per_object_by_idx,
)
from tbp.monty.frameworks.environments import embodied_data as ED
from tbp.monty.frameworks.experiments import MontyExperiment
from tbp.monty.simulators.habitat.configs import SinglePTZHabitatDatasetArgs
#####
# To test your env and familiarize with the code, we'll run the simplest possible
# experiment. We'll use a model with a single learning module as specified in
# monty_config. We'll also skip evaluation, train for a single epoch for a single step,
# and only train on a single object, as specified in experiment_args and train_dataloader_args.
#####
import copy
import os
import numpy as np
from tbp.monty.frameworks.config_utils.config_args import (
EvalLoggingConfig,
FiveLMMontyConfig,
MontyArgs,
MotorSystemConfigInformedGoalStateDriven,
)
from tbp.monty.frameworks.config_utils.make_dataset_configs import (
EnvironmentDataloaderPerObjectArgs,
EvalExperimentArgs,
PredefinedObjectInitializer,
get_env_dataloader_per_object_by_idx,
)
from tbp.monty.frameworks.environments import embodied_data as ED
from tbp.monty.frameworks.experiments import (
MontyObjectRecognitionExperiment,
)
from tbp.monty.frameworks.loggers.monty_handlers import BasicCSVStatsHandler
from tbp.monty.frameworks.models.evidence_matching import (
EvidenceGraphLM,
MontyForEvidenceGraphMatching,
)
from tbp.monty.frameworks.models.goal_state_generation import (
EvidenceGoalStateGenerator,
)
from tbp.monty.simulators.habitat.configs import (
FiveLMMountHabitatDatasetArgs,
)
"""
Basic Info
"""
# Specify directory where an output directory will be created.
project_dir = os.path.expanduser("~/tbp/results/monty/projects")
# Specify a name for the model.
model_name = "dist_agent_5lm_2obj"
object_names = ["mug", "banana"]
test_rotations = [np.array([0, 15, 30])] # A previously unseen rotation of the objects
model_path = os.path.join(
project_dir,
model_name,
"pretrained",
)
"""
Learning Module Configs
"""
# Create a template config that we'll make copies of.
evidence_lm_config = dict(
learning_module_class=EvidenceGraphLM,
learning_module_args=dict(
max_match_distance=0.01, # =1cm
feature_weights={
"patch": {
# Weighting saturation and value less since these might change under
# different lighting conditions.
"hsv": np.array([1, 0.5, 0.5]),
}
},
max_nneighbors=10,
# Use this to update all hypotheses > x_percent_threshold (faster)
evidence_update_threshold="x_percent_threshold",
x_percent_threshold=20,
gsg_class=EvidenceGoalStateGenerator,
gsg_args=dict(
goal_tolerances=dict(
location=0.015, # distance in meters
), # Tolerance(s) when determining goal-state success
min_post_goal_success_steps=5, # Number of necessary steps for a hypothesis
),
),
)
# We'll also reuse these tolerances, so we specify them here.
tolerance_values = {
"hsv": np.array([0.1, 0.2, 0.2]),
"principal_curvatures_log": np.ones(2),
}
# Now we make 5 copies of the template config, each with the tolerances specified for
# one of the five sensor modules.
learning_module_configs = {}
for i in range(5):
lm = copy.deepcopy(evidence_lm_config)
lm["learning_module_args"]["tolerances"] = {f"patch_{i}": tolerance_values}
learning_module_configs[f"learning_module_{i}"] = lm
# The config dictionary for the pretraining experiment.
dist_agent_5lm_2obj_eval = dict(
# Specify monty experiment class and its args.
experiment_class=MontyObjectRecognitionExperiment,
experiment_args=EvalExperimentArgs(
model_name_or_path=model_path,
n_eval_epochs=len(test_rotations),
min_lms_match=3, # Terminate when 3 learning modules makes a decision.
),
# Specify logging config.
logging_config=EvalLoggingConfig(
output_dir=os.path.join(project_dir, model_name),
run_name="eval",
monty_handlers=[BasicCSVStatsHandler],
wandb_handlers=[],
),
# Specify the Monty model. The FiveLLMMontyConfig contains all of the
# sensor module configs and connectivity matrices. We will specify
# evidence-based learning modules and MontyForEvidenceGraphMatching which
# facilitates voting between evidence-based learning modules.
monty_config=FiveLMMontyConfig(
monty_args=MontyArgs(min_eval_steps=20),
monty_class=MontyForEvidenceGraphMatching,
learning_module_configs=learning_module_configs,
motor_system_config=MotorSystemConfigInformedGoalStateDriven(),
),
# Set up the environment and agent.
dataset_class=ED.EnvironmentDataset,
dataset_args=FiveLMMountHabitatDatasetArgs(),
# Set up the training dataloader. Unused, but must be included.
train_dataloader_class=ED.InformedEnvironmentDataLoader,
train_dataloader_args=get_env_dataloader_per_object_by_idx(start=0, stop=1),
# Set up the evaluation dataloader.
eval_dataloader_class=ED.InformedEnvironmentDataLoader,
eval_dataloader_args=EnvironmentDataloaderPerObjectArgs(
object_names=object_names,
object_init_sampler=PredefinedObjectInitializer(rotations=test_rotations),
),
)
experiments = MyExperiments(
dist_agent_5lm_2obj_eval=dist_agent_5lm_2obj_eval,
)
CONFIGS = asdict(experiments)
Hopefully this helps you in your endevours. If you have any questions on what any of the code does, don’t hesitate to ask. Otherwise, I’ll be stepping out of the conoversation now. Have a good day.
This version didn’t run for me. Perhaps it is because you ran dist_agent_5lm_2obj_eval before running the dist_agent_5lm_2obj_train step. Following through the 5th tutorial, that is the step that fails for me first.
I ran train before eval. It had completed without issue. I just removed dist_agent_5lm_2obj_train from the file, once done with it, as opposed to commenting it out.
I think you just have too much going on with your code. I would personally wipe it out and start over, beginning from the "unsupervised continual learning’ tutorial.
However, if you were dying to know the technical reason for your error, I think its this: It appears you’re persisting code across multiple tutorials. We shouldn’t actually be doing this, but we are, and its causing us problems. Specifically, code from the ‘Pretraining a Model’ tutorial.
In that tutorial, we had manually hardcoded sensor module configurations directly into the my_experiments file. However, in the 'Multiple Learning Modules" tutorial, we’re suppose to be offloading that work onto an external source: FiveLLMMontyConfig
In your code base, you’re correctly calling out to FiveLLMMontyConfig (line 245), but you’re then overwriting its variables by manually hardcoding sensor_module_id configurations later on in your file (for instance, with sensor_module_0 on line 372). This then causes initialization issues, resulting in our ‘patch_0.rgba’ Keyerror.
Good idea. I did this and after adding the missing " from benchmarks.configs.names import MyExperiments" to the tutorial code, it worked. Thanks.
Awesome, thats great to hear!
Are you all set for now then?
I am all set. Thank you for all your help.
